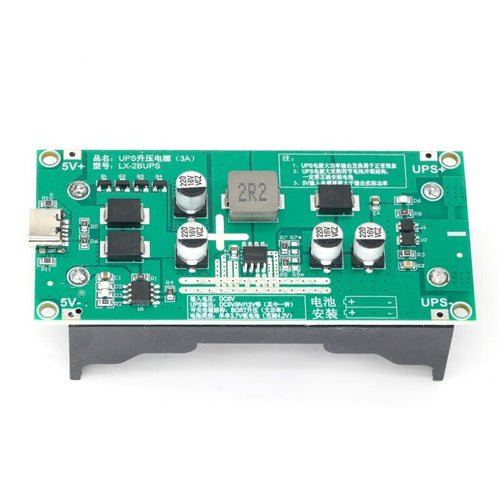

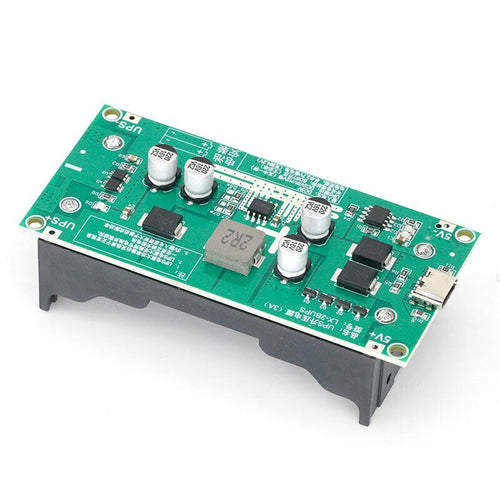

5V/9V/12V Type-C 15W 3A 18650 Lithium Battery Charger Module DC-DC Step Up Booster Fast Charge UPS Power Supply Module Board

Features:

1. Uninterrupted Power Supply (UPS): Ensures continuous power supply to the load even during power outages, safeguarding against data loss or disruption in sensitive electronic devices.

2. Efficient Boost Circuit: The BOST boost circuit with a high-current MOS enables efficient power delivery with an impressive efficiency rating of up to 96%.

3. Lithium Battery Protection: Comprehensive protection mechanisms, including over-charge, over-discharge, over-temperature, and over-current protection, enhance the safety and longevity of the lithium battery.

4. Versatile Output Options: Offers selectable output options of 5V, 9V, and 12V, catering to various devices' power requirements.

5. Compact Design: The module's compact size of 89*42*22.4mm makes it easy to install and integrate into different setups.

Specification:

Function: Uninterruptible Power Supply (UPS)

Power Supply: Directly supplies power to the load via the booster circuit when connected to the main power supply

Battery Charging: Simultaneously charges the lithium battery when the power supply is on

Battery Backup: Automatically activates the battery path to supply power to the load via the boost circuit when the main power is cut off

Boost Circuit: BOST boost circuit with a peak power of up to 20W and a rated power of up to 15W

MOS: Built-in 12A high current MOS for efficient power delivery

Efficiency: Up to 96% for optimal power utilization

Output Options: Optional 5V/9V/12V output for versatile compatibility

Output Ratings:

Output 5V: Current 3A

Output 9V: Current 1.6A

Output 12V: Current 1.2A

Load Recommendation: The load is recommended to be less than 15W under normal conditions

Lithium Battery Protection: Provides protection against over-charge, over-discharge, over-temperature, and over-current situations

Automatic Activation: If the battery enters the protection state due to a short circuit, it automatically activates and restores output when connected to 5V charging

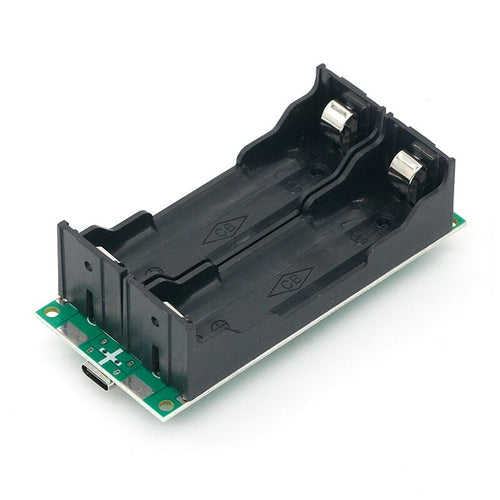

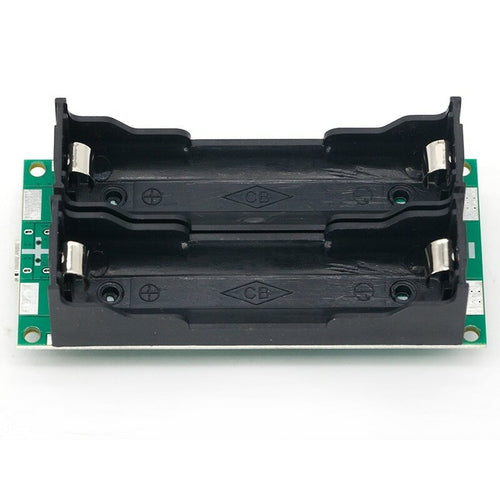

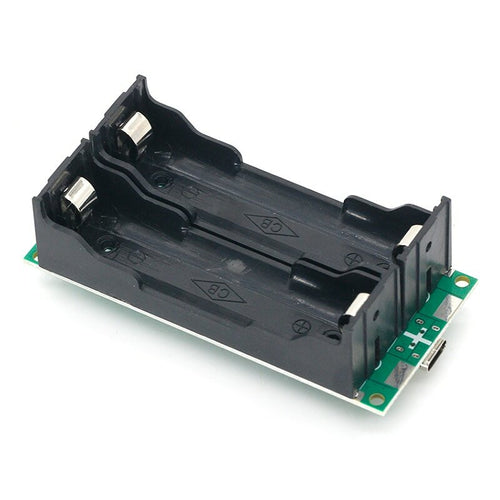

Module Size: 89*42*22.4mm (back patch battery box)

Package Include:

1× Power Supply Module
