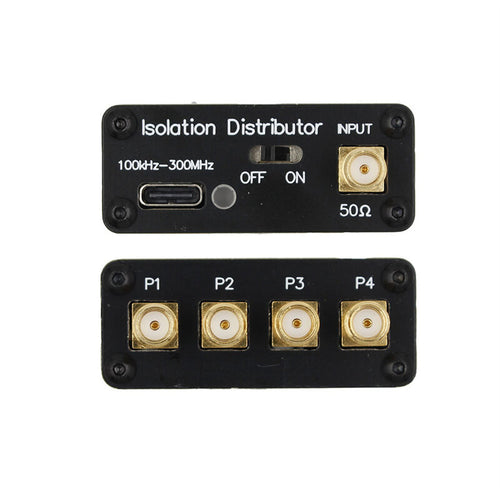

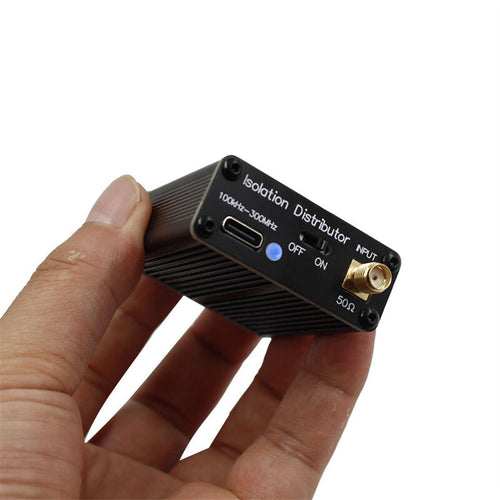

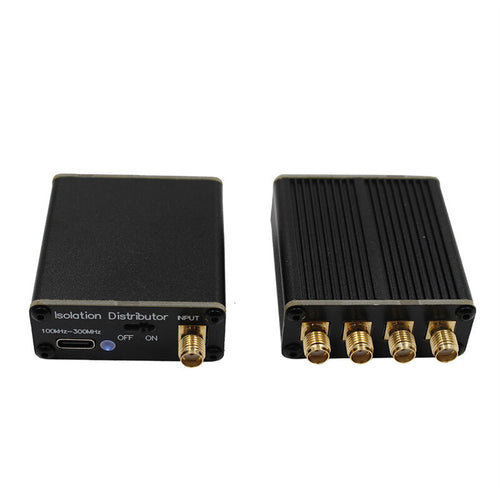

Active RF Isolation Distributor Suitable for RF Signal Radio Antenna SDR GPSDO Signal Source

Features:

Multi-Channel Distribution: The Active RF Isolation Distributor is designed to distribute RF signals into multiple channels, allowing for efficient signal distribution and isolation.

High Frequency Range: It operates within a wide frequency range from 100kHz to 150MHz, making it suitable for various RF signal applications.

Low Insertion Loss: With an insertion loss of less than 0.8dB, it minimizes signal degradation during distribution.

Impressive Isolation: Offers exceptional output to input isolation, surpassing 80dB, and output isolation exceeding 60dB, effectively reducing common mode interference and power ground wire interference.

Built-in Battery: Powered by a built-in 600mAh high-temperature lithium battery, the distributor can operate continuously for over 3 days without the need for an external power source.

Specification:

Product Name: Active RF Isolation Distributor

Operating Frequency Range: 100kHz to 150MHz

Insertion Loss: Less than 0.8dB

Output to Input Isolation: Greater than 80dB

Output Isolation: Greater than 60dB

Input Impedance: 50 ohms

Battery Capacity: 600mAh (Built-in)

Battery Life: More than 3 days of continuous operation

Dimensions: 8 x 8 x 3.5cm

Package Weight: 100 grams

Package Include:

1x Active RF Isolation Distributor

1x Cable
