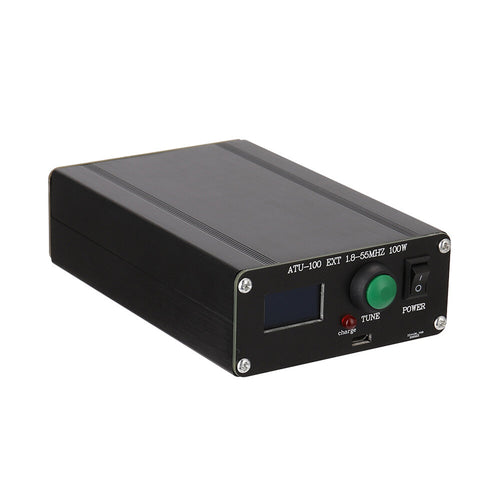

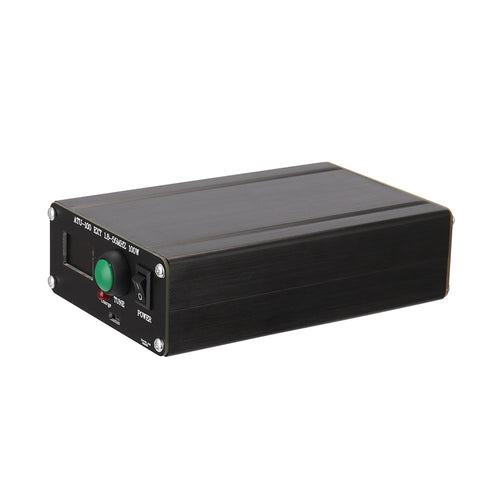

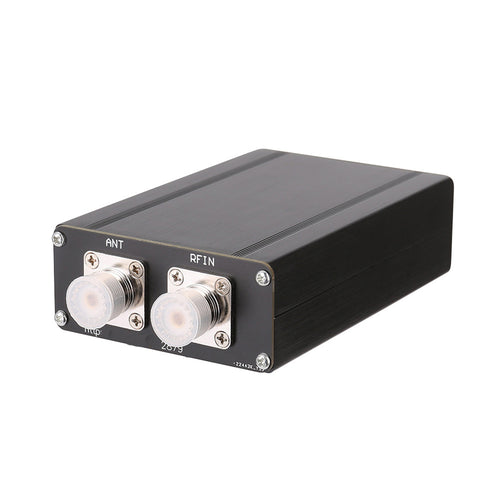

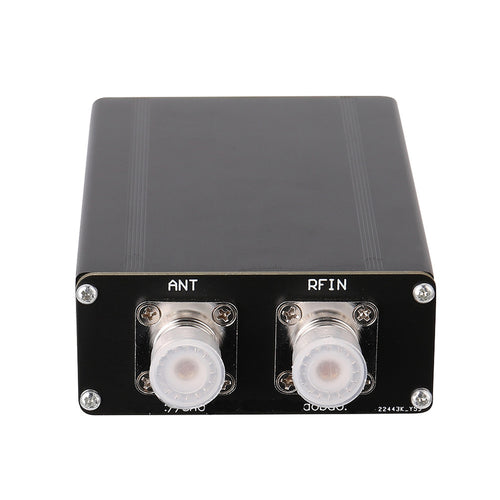

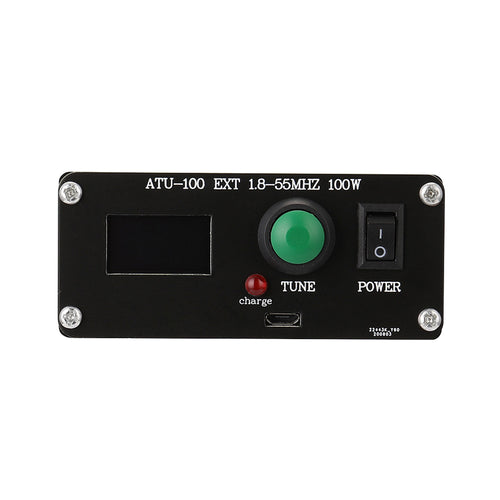

ATU-100 Mini Automatic Antenna Tuner Shortwave 1.8-55Mhz 100W Metal Accessories Assembled With Case

Features:

- Mini shortwave automatic antenna tuner, Type-C charging interface, M seat, OLED display.

- The antenna tuner is automatically tuned without any control wires, suitable for most radio stations.

- The device contains a set of 7 capacitors and 7 inductors, which allows it (with the largest configuration) to work effectively in a wide frequency band, overlapping the amateur radio HF band of 1.8-55MHz.

- With metal housing, stable and reliable performance.

>>>Manual: Click here to open<<<

Specifications:

Material: metal

Color: black

Power supply voltage: USB charge and discharge (built-in battery)

Battery: 1 * lithium battery, 400mAh (included)

Maximum current consumption: 400mA

Maximum working power: 100W

Maximum possible measurement power: 150W

Minimum power required to start tuning: 5W

Minimum possible measurement power: 0.1W

Measurement steps for power up to 10W: 0.1W

Measurement steps with power higher than 10W: 1W

Power measurement accuracy: 10%

Maximum installation inductance: 8.53uH

Minimum installation inductance step length: 0.05uH

Maximum installation capacitance: 1869pF

Minimum installation capacitance step length: 10pF

Display: OLED

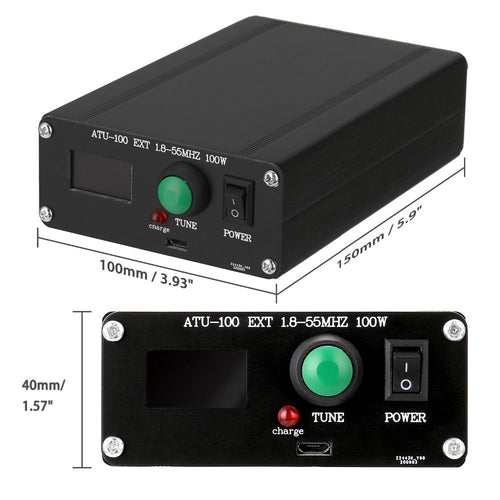

Package size: 150 * 100 * 40mm / 5.9 * 3.9 * 1.6in

Package weight: 300g / 10.6ounce

Package Included:

1 x ATU-100 1.8-55Mhz Mini Automatic Antenna Tuner
