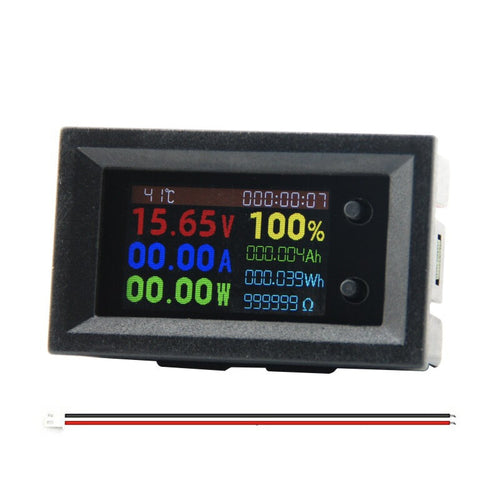

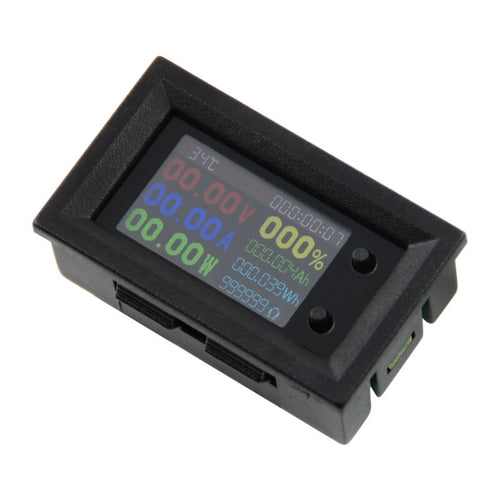

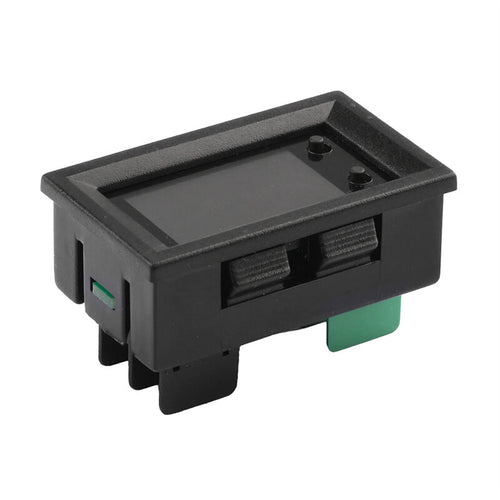

DC7200 7-200V 20A Digital Power Energy Voltmeter Ammeter Voltage Wattmeter Temperature Meter Electric Energy Frequency Meter

Features:

1. Multifunctional measuring instrument for high voltage operation

2. 1.14-inch high-definition IPS LCD color screen, 135*240 resolution

3. Maximum current measurement 20A

4. Support data clearing, no-load zeroing, voltage fine-tuning, current fine-tuning

5. Measurement and display of real-time voltage, current, power, -percentage of electricity and internal resistance and instrument temperature, cumulative capacity, energy,peration

Parameter:

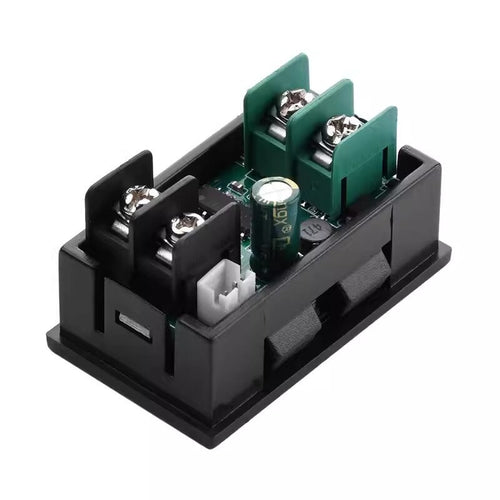

Input/output interface: 20A high current 2P terminal

Instrument working voltage: ①XH-2.54-2P red and black wires, independent power supply DC6~30V ②Common power supply DC6~120V

Voltage measurement range: DC0~120V

Current measurement range: 0.00A~20.00A

Capacity measurement range: 0~9999.99Ah

Electricity metering range: 0~9999.99Wh

Impedance measurement range: 0~9999.99Ω

Temperature measurement range: 0~99℃

Time measurement range: 0~999:59:59 (hour:minute:second)

Data reset: support

No-load return to zero: support

Voltage fine-tuning: support

Current trimming: support

Percentage power display: Supports percentage power based on voltage reference (full power and no power voltage need to be manually set)

Product size: 47.59 × 28.67 × 25.33mm

Installation hole: 45×26mm

Product weight: 26g

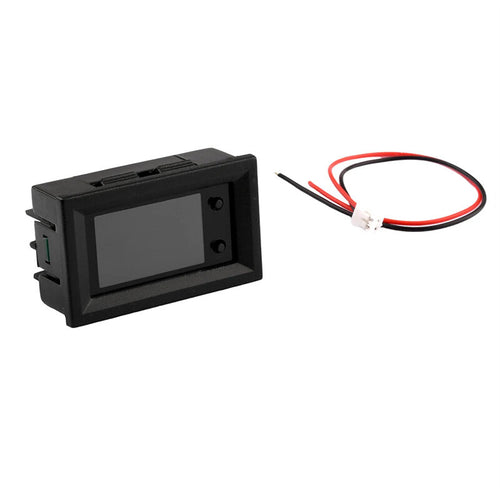

XH-2.54-2P red and black wires:

Thin red wire: positive power supply

Thin black wire: Negative, and thick black wire construction site, do not need to connect when measuring loop current

This wire is only used as an independent power supply when measuring voltages below 6V, and it is not necessary to connect this wire when measuring voltages above 6V.

Package Include:

1x DC7200 Multifuncation Meter Module

1x XH-2.54-2P Red and Black Wire
