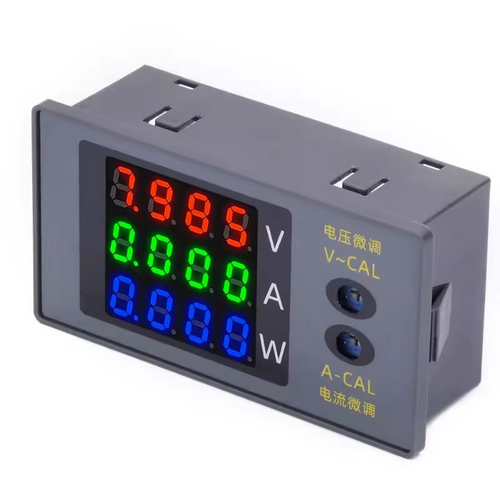

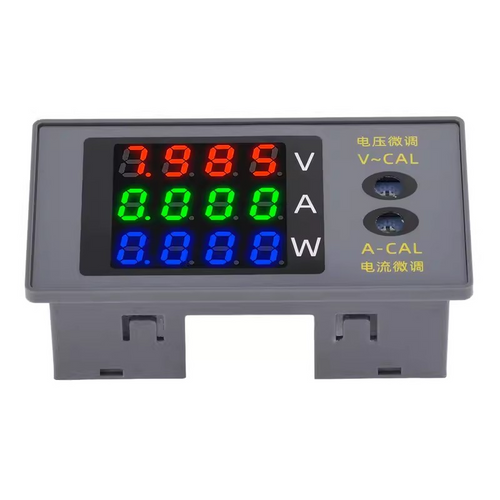

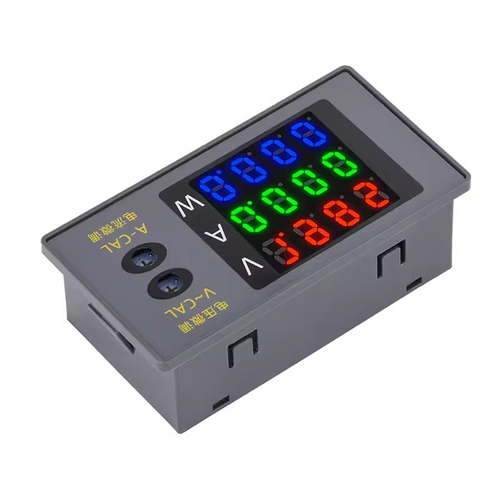

DC730 Digital Voltmeter Ammeter Wattmeter Voltage Current Energy Meter DC 0~100V 10A 1000W High Precision Power Meter

Features:

1.Adopting high quality ASB material, LED digital tube high precision display, stable performance and high efficiency.

2. Voltage measurement range: DC0.000~100.0V Error ±1.00V 0.1V jump.

3. Current measurement range: 0.000A~10.00A Error ±0.1A 0.03A start.

4. Power measurement range: 0.000~1000W.

5. DC voltage, current, power real-time testing, the same screen display, clearly recognizable.

6. Support voltage display fine-tuning, support current display fine-tuning.

Parameter:

Model: DC730

Working voltage: XH-3P red and black wire DC7~30V (Do not over-voltage power supply)

Voltage Measuring Range: DC0.000~100.0V Error ±1.00V 0.1V jumping

Current Measurement Range: 0.000A~10.00A Error ±0.1A 0.03A jumping

Power measurement range: 0.000~1000W

Working energy consumption: 20mA (DC12V measured)

Voltage display fine-tuning: support, adjustable resistance fine-tuning

Current display fine-tuning: support, adjustable resistance fine-tuning

Product size: 79.3×42.1×26.2mm

Installation opening: 71.7×39.1mm

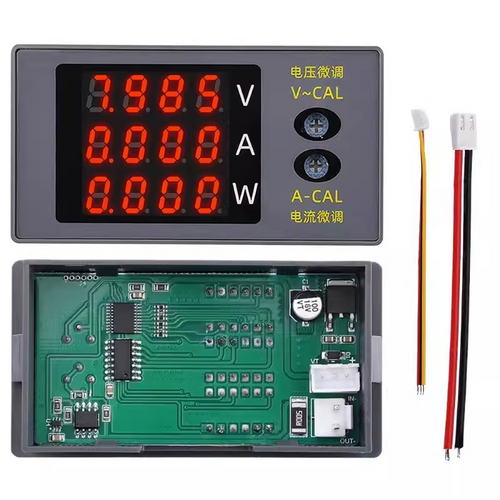

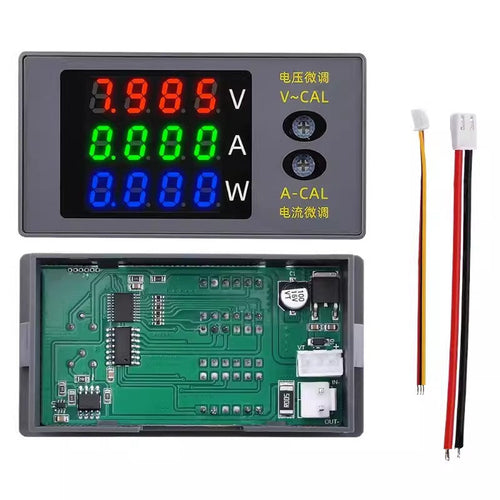

Package include:

1x Power Meter

1x XH-2.54-3P Red, Black and Yellow Wire

1x VH-3.96-2P Coarse Red and Black Wire

Wire Definition Introduction:

XH-2.54-3P red, black and yellow wire (thin wire Total length: 155mm)

Thin red wire: positive pole of the working power supply, can not be connected to the power supply above 30V.

Thin black wire: negative pole of the working power supply, and thick black wire site, do not need to be connected when sharing power supply.

Thin yellow line: voltage test line, connected to the positive pole of the test circuit power supply.

VH-3.96-2P Coarse red and black wires (thick wire total length: 165mm) current test line

Thick wire parallel shunt resistance, can not be directly connected to the power supply poles, will be short-circuited!

Thick red wire: current test positive pole, string in the negative end of the load, connect the broken line after the first break!

Thick black wire: current test negative, connected to the negative terminal of the power supply, connected to the broken line first after the break!

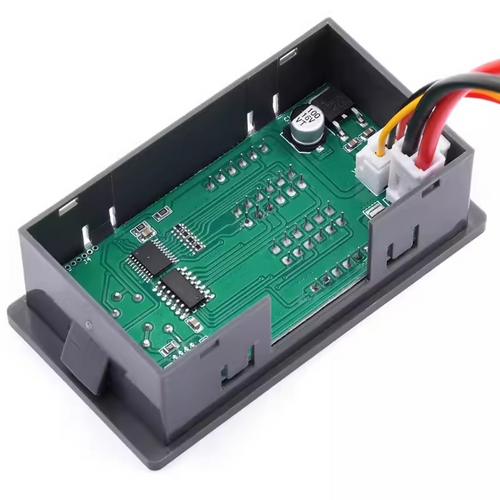

Connect the shunt: on-board low temperature drift alloy resistor shunt, according to the wiring diagram, direct wiring can be used!
