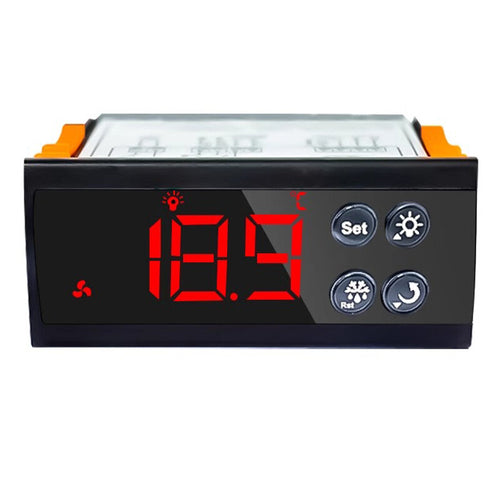

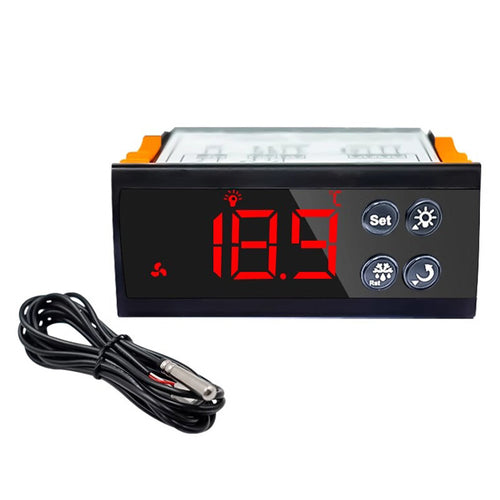

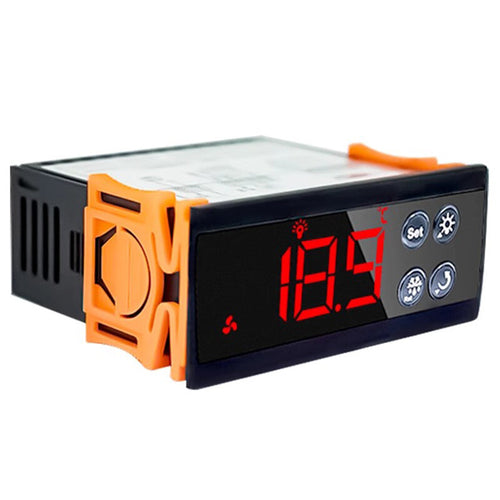

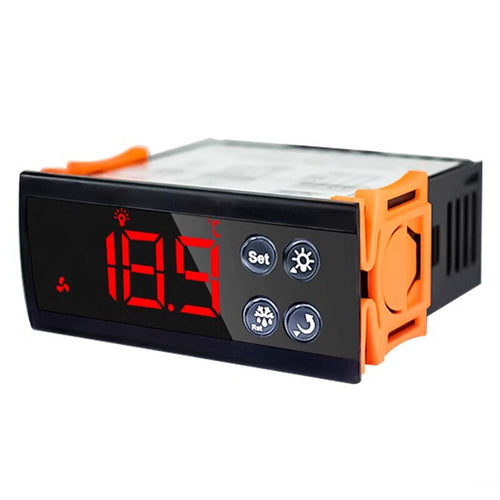

ECS-310 Freezer Refrigerator Digital Display Thermostat AC220V Electronic Temperature Controller with Refrigeration/Lighting/Fan Function

Features:

1. High Precision Temperature Control:

Provides accurate temperature management with a measurement range from -50°C to 99°C and a precision of ±1°C.

2. Robust Load Capacity:

Supports up to 16A for refrigeration, 10A for fans, and 3A for lighting, making it perfect for versatile applications.

3. Energy-Efficient Operation:

Consumes ≤5W, making it highly efficient and cost-effective in terms of energy usage.

4. Convenient Installation:

Easy to install with practical dimensions of 71mm * 29mm for mounting and a front panel size of 75mm * 34.5mm.

5. Reliable Sensor:

Comes equipped with a long-lasting NTC sensor with a 2-meter cable to ensure effective temperature measurement and control.

Specifications:

Model: ECS-310

Power Supply Voltage: 220VAC ±10% / 50Hz

Temperature Range: -50°C to 99°C

Temperature Accuracy: ±1°C

Load Power:

Refrigeration: 16A

Fan: 10A

Lighting: 3A

Total Power Consumption: ≤5W

Sensor Cable Length: NTC / 2.0 meters

Installation Dimensions: 71mm * 29mm (Width * Height)

Front Panel Dimensions: 75mm * 34.5mm (Width * Height)

Overall Dimensions: 75mm * 34.5mm * 64mm (Width * Height * Depth)

Package Includes:

1 x ECS-310 Digital Display Thermostat

1 x NTC Temperature Sensor
