for RD6012P RD6012PW 65V 800W Switching Power Supply AC/DC Power Transformer

Tips: Due to appearance and weight issues, we have tried our best to protect the product, but collisions and other problems may occur during transportation, and the appearance of the product may be slightly curved. You can try to use tools for some repairs. If it affects the normal use of the product, please contact us, thank you for your understanding.

Project

Technical Parameters

DC Output Voltage

65V Actually can reach 85V

(designed for Product ID: RD6012P)

Rated Output Current

11.4A

Rated Output Power

800W

Ripple and Noise

＜240mV

Output Voltage Accuracy

±1%

Output Voltage Adjustable Range

±10%

load Regulation

＜±0.5%

Line Regulation

＜

±1%

Output Overload Protection

105%-135% Type: constant current output

+VO Drop to undervoltage point cut off the output

Reset: Reconnect the input

Output Over-Voltage Protection

115%-145%

Output undervoltage protection

40%-45%V OUT

Efficiency (typical)

＞85%

Over temperature protection

RTH3: ≥70

℃

the fan runs fast

≥90

℃

shut down the output (18V-48V)

Input voltage range

90-132VAC/180-264VAC, 47Hz~63Hz; 254VDC~370VDC

Input inrush current

110VAC 25A, 220VAC: 50A

Maximum input working current

<

13A 115VAC,

<

7.5A 230VAC

Set-Up/Rise/Hold-Up Time

200ms, 50ms, 20ms: 230VAC

Dielectric Hipot

Input-output: 1.5KV AC, input-shell: 1.5kV AC

Output-shell: 0.5KV AC for 1 min

Leakage Current

Input-output at 1.5KV AC; Leakage Current

＜

6mA

Leakage Current

Input-output at 220V AC; Leakage Current

＜

1.5mA

Isolation Resistance

Input-output, input-shell, output-shell: 500VDC/100MΩ

Working temperature and humidity

-10

℃

~+50

℃

, 20%~90RH

Storage temperature and humidity

-20

℃

~+85

℃

, 10%~95RH

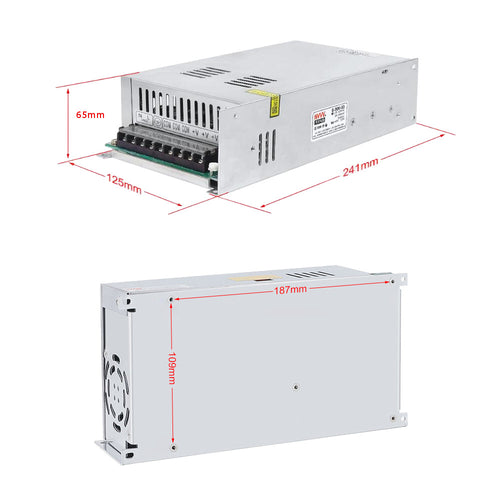

Size

241*125*65mm

Net weight / gross weight

1268/1358g

Package includes:

1 x Power supply
