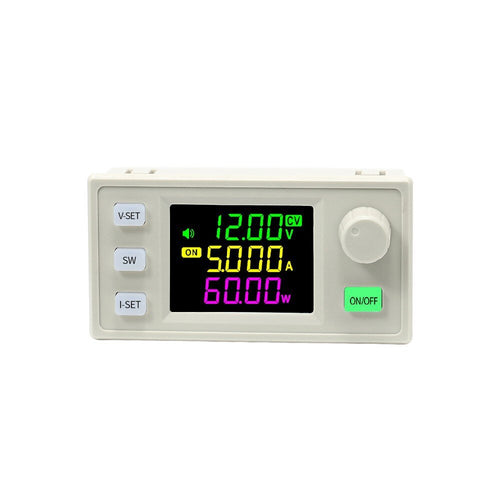

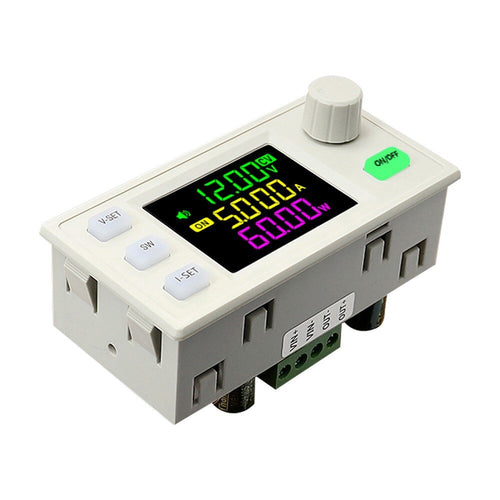

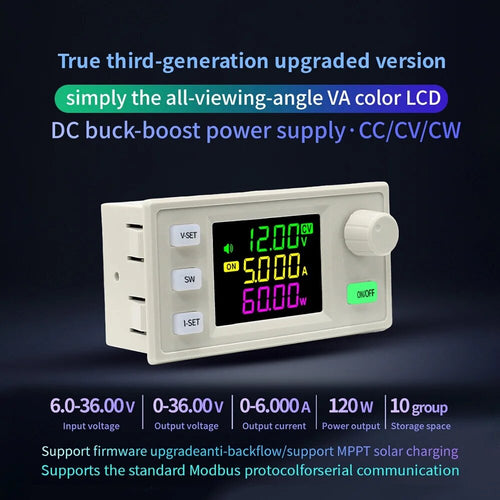

SK60X CNC DC Regulated Power Supply Solar Charging Module Supports MPPT with Keyboard Indicator Adjustable DC to DC Step-down

Features:

1. X series products use silicone buttons, feel comfortable, each button with cool indicator light

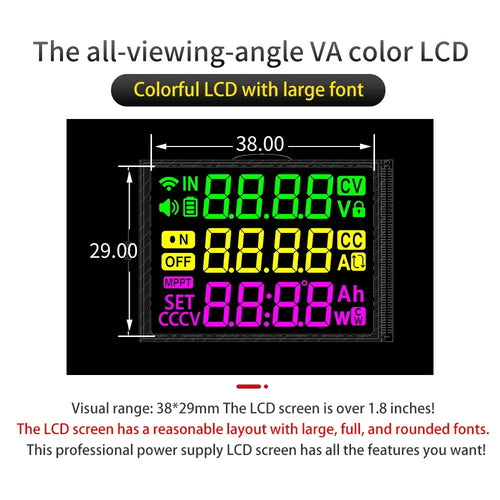

2. LCD screen layout is reasonable, the font is large and full of rounded, professional power supply LCD screen, you want the function it has!

3. The display board adopts immersed gold design, anti-oxidation, better conductivity, more durable! The use of one-piece injection molding shell, flame-retardant material is safer! Double-layer buckle design, double-layer circuit board fixed more firmly!

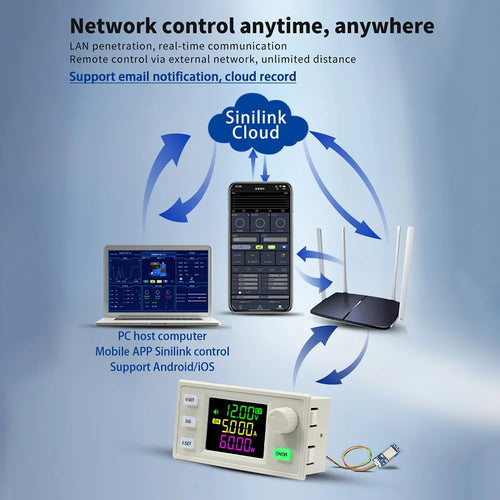

4. The product supports serial communication standard Modbus protocol, support for firmware upgrade, support for MPPT solar charging, full-featured!

5. The product adopts high-precision external clock crystal to ensure the accuracy of time, capacity/energy statistics more accurate, 48-pin powerful MCU controller, 64M frequency computing speed faster!

6. The product has a wide range of applications, there is a backflow prevention function can be charged to a variety of rechargeable batteries, and with MPPT function to support MPPT solar charging, can be connected to the external temperature probe to support over-temperature protection and so on!

Parameter:

Input voltage: 6.0~36V

Output current: 0~5.000A

Output power: 60W

Voltage resolution: 0.01V

Conversion efficiency: 88% or so

Output Voltage: 0~36V

Voltage accuracy: ±0.5%+1 word

Current accuracy: ±0.5%+3 words

Current resolution: 0.01A

Storage data group: 10 groups

MPPT function: support MPPT solar charging

Typical value of output ripple: VPP-150mv

Buzzer: Yes

Soft start: Yes

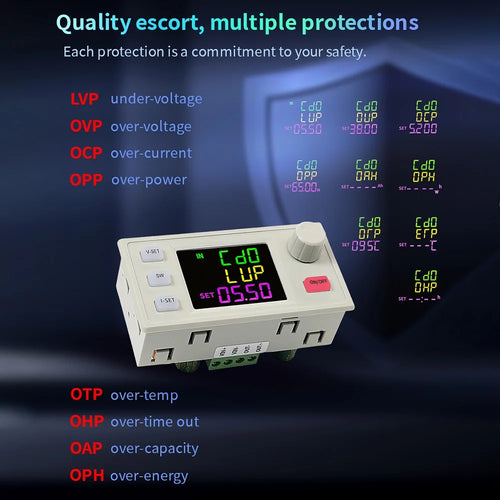

Protection mechanism:

Input anti-reverse connection: Yes

Output anti-reverse: Yes

Input undervoltage protection: 5.5-36V adjustable, default 5.5V

Output over-voltage protection: 0-38V adjustable, default 38V

Output overcurrent protection: 0 -5.2A adjustable, default 5.2A

Output over power protection: 0 -80W adjustable, default 65W

Over-temperature protection: 0-110°C adjustable, default 95°C

Timeout protection: 0 -100H adjustable, default off

Over capacity protection: 0~9999AH adjustable, default off

Super energy protection: 0~4200KWH adjustable, default off

Package includes:

1 x Adjustable boost and buck module

(Note: The 485 module , wifi module and IR receiver with remote control are not in the package, you need to buy it separately.)
