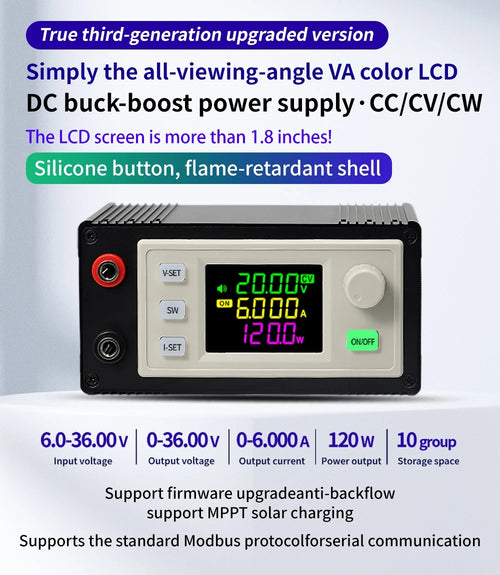

SK60X/SK120X CNC Buck Boost DC Adjustable Voltage Regulator Power Supply Constant Voltage Constant Current Solar Charging Module with Shell

Feature:

1. The X series products use silicone buttons, which have a comfortable feel, and each button is equipped with a cool indicator light

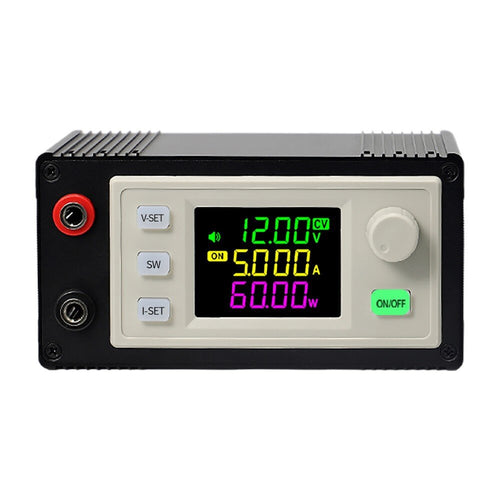

2. The layout of the LCD screen is reasonable, with large and full fonts. The professional power LCD screen has all the functions you want

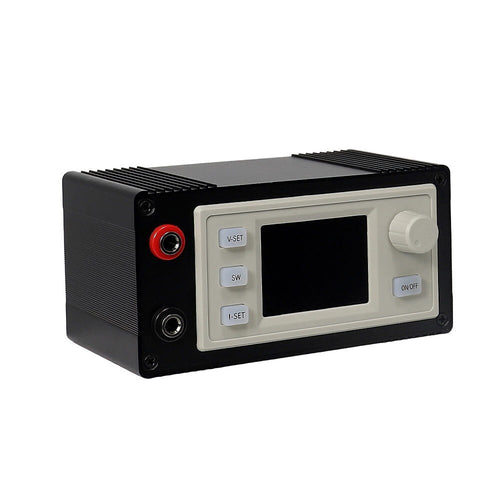

3. The display panel adopts a gold-plated design, which is resistant to oxidation, has better conductivity, and is more durable! Adopting an integrated injection molded shell, the flame-retardant material is safer! Double layer buckle design ensures a more secure fixation of the double-layer circuit board

4. The product supports serial communication standard Modbus protocol, firmware upgrade, MPPT solar charging, and comprehensive functions

5. The product adopts high-precision external clock crystal oscillator to ensure the accuracy of time, more precise capacity/energy statistics, powerful 48 pin MCU controller, and faster 64M frequency operation speed

6. The product has a wide range of applications, including anti backflow function that can charge various rechargeable batteries, MPPT function that supports MPPT solar charging, external temperature probe that supports over temperature protection, and more

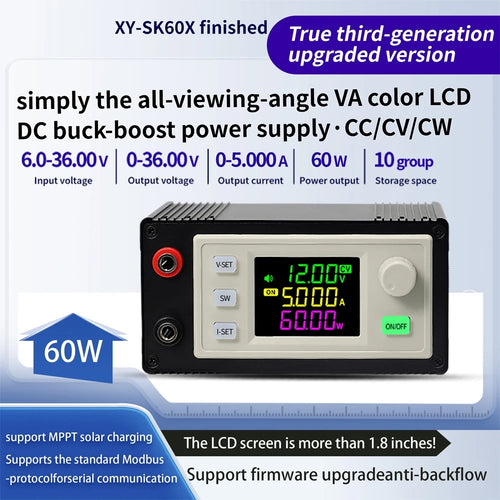

SK60X

SK120X

Input voltage

6.0~36V

6.0~36V

Output current

0~5.000A

0~6.000A

Output power

60W

120W

Voltage resolution

0.01V

0.01V

Conversion efficiency

around 88%

around 88%

Output voltage

0~36V

0~36V

Voltage accuracy

± 0.5%+1 word

± 0.5%+1 word

Current accuracy

± 0.5%+3 words

± 0.5%+3 words

Current resolution

0.01A

0.001A

Storage data group

10 groups

10 groups

MPPT function

Supports MPPT solar charging

Supports MPPT solar charging

Buzzer

Yes

Yes

Soft Start

Yes

Yes

Protection mechanism

Input anti reverse connection

Yes

Output anti backflow

Yes

Input undervoltage protection

adjustable from 5.5-36V, default 5.5V

Output overvoltage protection

adjustable from 0-38V, default 38V

Output overcurrent protection

0-5.2A adjustable, default 5.2A

0-6.2A adjustable, default 6.2A

Output over power protection

0-80W adjustable, default 65W

0-150W adjustable, default 125W

Over temperature protection

adjustable from 0-110 ℃, default 95 ℃

Timeout protection

adjustable from 0 to 100H, default off

Overcapacity protection

adjustable from 0 to 9999AH, default off

Super energy protection

adjustable from 0 to 4200KWH, default off

Package includes:

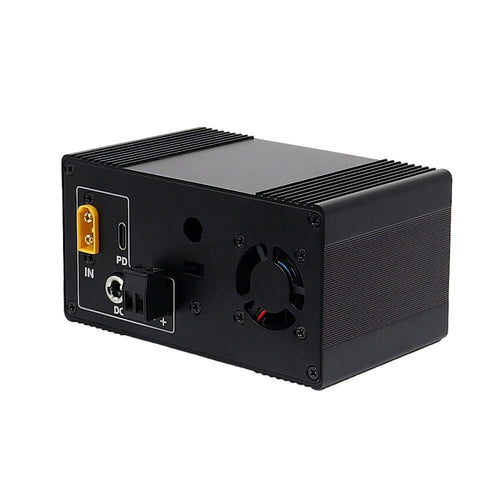

1 x Regulator Power Supply with Shell

(Note: The 485 module , wifi module and IR receiver with remote control are not in the package, you need to buy it separately.)
