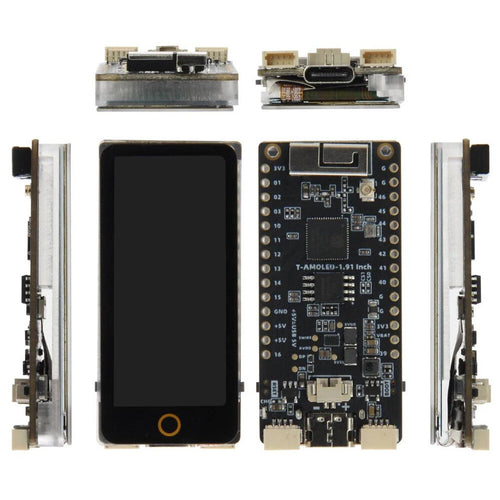

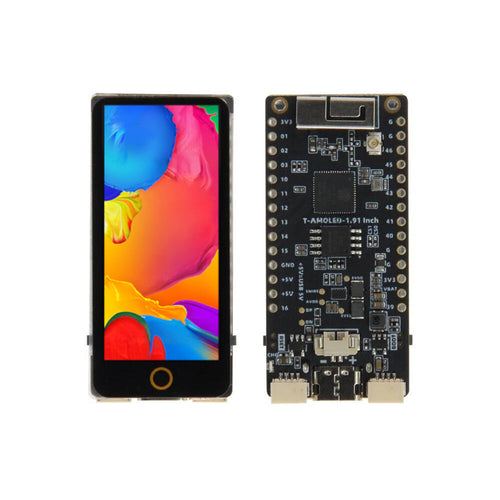

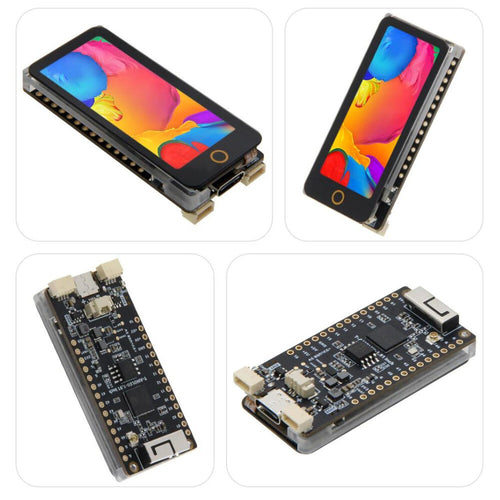

T-Display-S3 AMOLED Touch Screen ESP32-S3 1.91-inch RM67162 Display Development Board WiFi Bluetooth 5.0 Wireless Module

Github:

https://github.com/Xinyuan-LilyGO/T-Display-S3-AMOLED

https://github.com/Xinyuan-LilyGO/lilygo-micropython/tree/master

T-Display-S3 AMOLED Introduction:

The T-Display-S3 AMOLED is an upgraded development board from the T-Display-S3, featuring the first ESP32-S3+AMOLED combination. It has upgraded from an LCD to an AMOLED display, providing better color display. Additionally, it has upgraded from an SPI to a QSPI interface for faster speed, and from an onboard antenna to a 3D antenna for an improved WiFi and Bluetooth experience.

T-Display-S3 AMOLED

MCU

ESP32-S3R8 Dual-core LX7 microprocessor

Flash

16MB

PSRAM

8MB

Wireless Connectivity

2.4 GHz Wi-Fi 802.11

Bluetooth 5.0 (LE)

Programming Platform

ArduinoIDE, PlatformlO-IDE, Micropython

Bat voltage detection

IO04

Onboard Functions

Boot+Reset+IO21 Button

1.91 inch RM67162 IPS AMOLED

Drive Chip

RM67162

Active Area

19.8x44.22mm

Resolution

240(W)xRGBx536(H)

Interface

QSPI

SViewing Angle

IPS Full View Angle

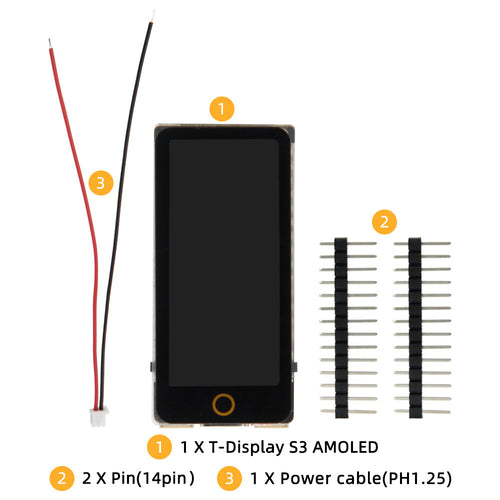

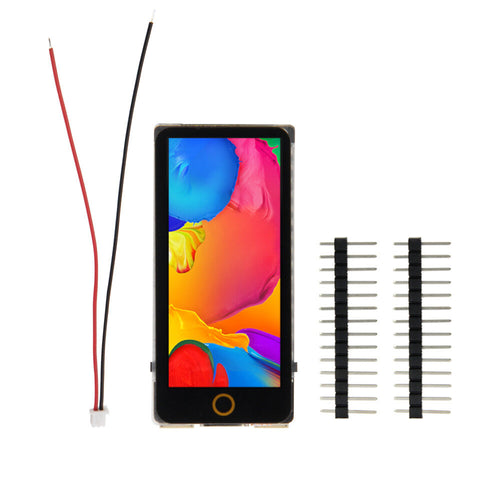

Package includes:

1 x Touch screen Pin not soldered (H681)
