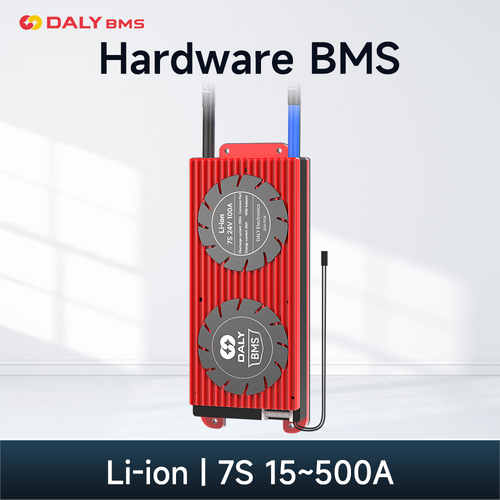

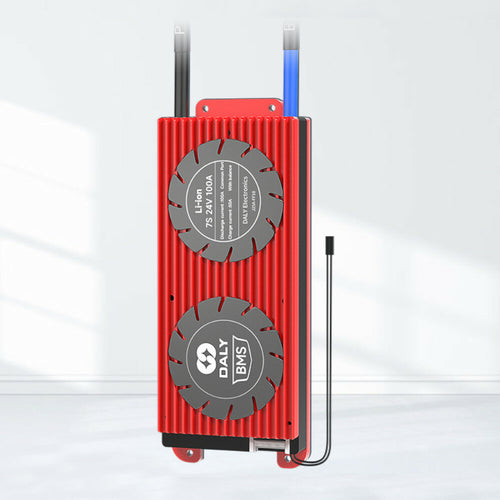

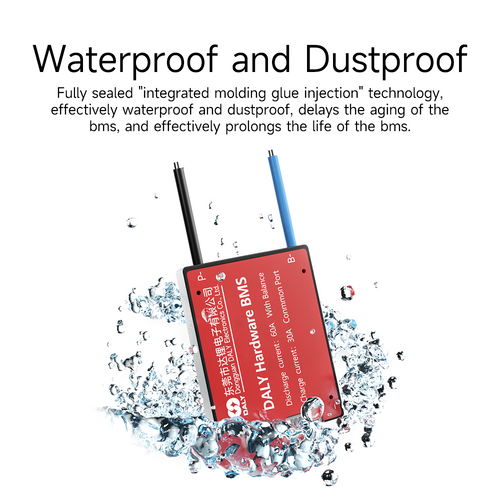

Ternary 7S 15A-250A 7-string 24V Lithium Battery Protection Board Li-ion 4.2V Inverter Outdoor Power Supply Hardware BMS
- Problemlose Garantie
- 30 Tage Geld-zurück-Garantie
- Schneller, kostenloser Versand
- Lebenslanger Kundensupport
Product Parameters:
*lf you need customized services, please consult customer service for details.
Charge voltage
Li-ion: N(strings)*4.2V
Discharge current (A)
15
20
30
40
50
60
80
100
120
150
200
250
300
400
500
Discharge overcurrent protection value(A)
50 ±10
60 ±10
100 ±20
160 ±30
160 ±30
220 ±40
360 ±50
360 ±50
260 ±50
260 ±50
500 ±100
500 ±100
500 ±100
1000 ±200
1000 ±200
Charge current (A)
8
10
15
20
25
30
40
50
60
75
100
125
150
200
250
Charge overcurrent protection value(A)
20 ±3
25 ±3
45 ±5
60 ±10
75 ±10
80 ±10
140 ±20
140 ±20
100 ±20
100 ±20
200 ±30
200 ±50
200 ±30
400 ±100
400 ±100
Main Circuit Conduct Inner resistance
<=20mΩ
Over charge protection
Balance voltage
Detect voltage
:
Li-ion: 4.25±0.05V
Detect voltage: Li-ion: 4.13V
Protection delay: 1S
Release voltage: Li-ion: 4.13V
Release voltage: Li-ion: 4.15±0.05V
Balance current: 30±5mA
Over discharge protection
Over Discharge current protection
Detect voltage
:
Li-ion: 2.7±0.05V
Protection delay: 1S
Protection delay: 1S
Protection release condition:Off load
Release voltage: Li-ion: 3.0±0.05V
Short circuit protection
Self Consumption
Protection conditon:Short circuit of external load
Working current: 100~200mA
Detect delay: 200~500uS (Subject to actual test)
Sleeping currentf over-discharge): 0uA
Release condition
:
Off load
Working Temp
Charge: -20~55℃ Discharge: -40~70℃ (Customizable)
Working Temp
Temp range: -20~60℃ Storing Temp Temp range: -40~85℃

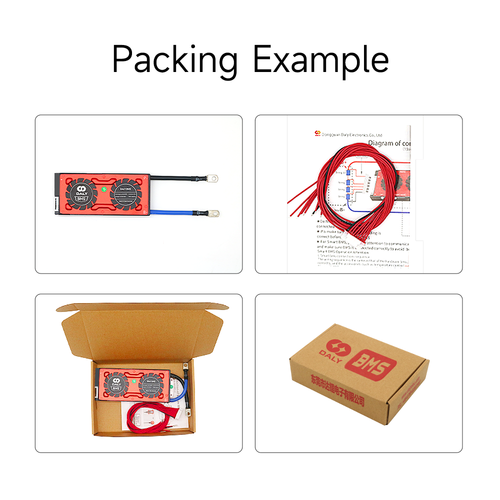

Package includes:
1 x Cable
1 x Battery Protection Board

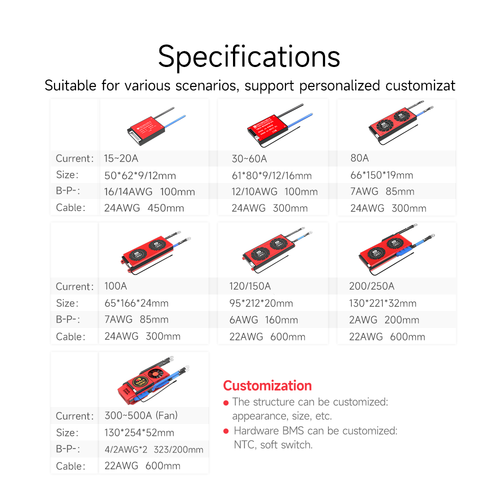

(The appearance and weight of products with different currents are inconsistent. Please refer to the product appearance received. thank you for understanding)

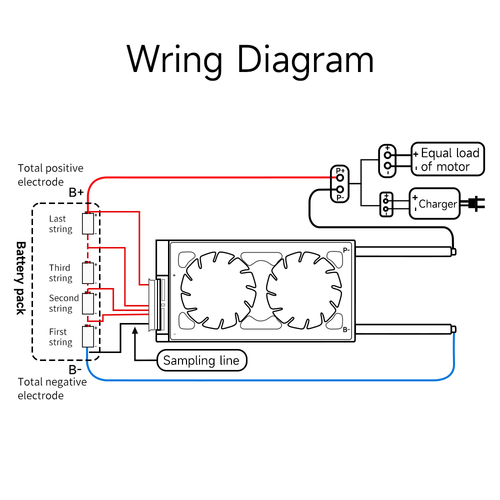

Protective board connection battery wiring:
* Special attention: The wire cable of different manufacturers are not same standard, please make sure to use he matching cables; the colors of B- and P- lines of different manufacturers are different, please pay attention to the B- and P- marks.
1. Remember!!! When welding sampling wire cable, do not insert the cable into the BMS.
2. The cable connects the total negative electrode B-from the fine black line. The second wire (red wire) is connected to the positive pole of the first string of batteries.Connect the positive electrode of each string of batteries in turn until the last wire cable of the total positive B+.
3. After the cable is connected, do not insert the plug directly into the BMS.First measure the voltage between each two adjacent metal terminals on the back of the plug. If it is a ternary lithium battery, the voltage should be between 3.0~4.15V, and the iron-lithium battery should be 2.5~ Between 3.6V, lithium titanate battery should be between 1.8-2.8V, make sure the voltage is correct before proceeding to the next step.
4. Receive the BMS B-line (blue thick line) to the total battery negative electro-de (B-line length should not exceed 40cm).
5. Insert the wire cable into the BMS.
After the wiring is completed:
1. Measure whether the voltage of battery B+, B- is equal to the voltage of B+ and P- (that is, whether the voltage of the battery pack itself is e- qual to the voltage after passing through the protection board, if they are equal, the BMS is working normally, which can be used normally. If not, please follow Re-check the queue of the wiring above.
2. The positive electrodes of the charging and discharging end are all directly connected to the total positive pole B+ of the battery; the wiring method of the same port BMS is that the charging and discharging negative poles are connected to the P- point of the BMS; the wiring m- ethod of the branch BMS is the negative pole of charging Connected to C-, the negative electrode of discharge is connected to P-.
3. Finally, if you have any questions, please contact the customer service to help you solve it.
