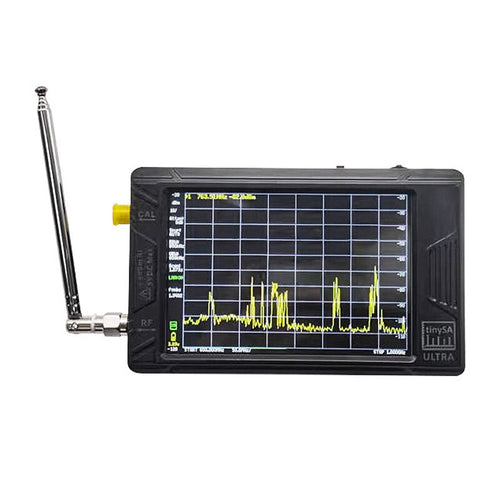

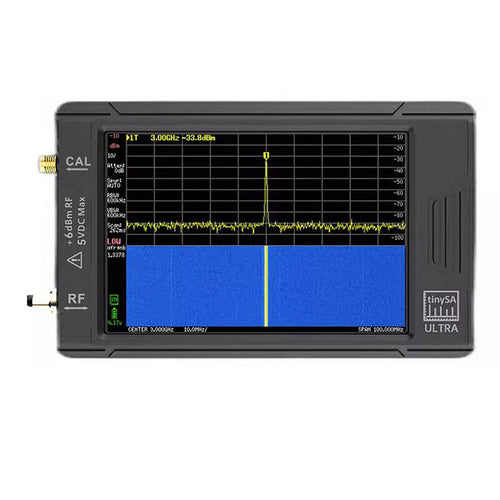

tinySA ULTRA 100k-5.3GHz Handheld Spectrum Analyzer with 4 inch TFT Display High Frequency Output Signal

Features:

1. Wide Frequency Range: Covering a broad range from 100 kHz to 5.3 GHz (6 GHz in Ultra mode), the tinySA ULTRA allows for versatile spectrum analysis across various frequency bands.

2. Ultra Mode Calibration: The instrument's Ultra mode ensures accurate level calibration up to 5.3 GHz, making it suitable for high-frequency applications that demand precision.

3. Advanced Signal Processing: With resolution filters ranging from 200 Hz to 850 kHz and 450 displayed points per scan, users can perform detailed signal analysis and obtain comprehensive insights.

4. Portable and User-friendly: The handheld design and 3.95" TFT display provide portability and ease of use, enabling field measurements and on-the-go analysis.

5. High Sensitivity and Low Noise: The spectrum analyzer offers exceptional sensitivity with a DANL as low as -169 dBm/Hz (LNA On) at 100 MHz, making it ideal for detecting weak signals in noisy environments.

Specification:

Product Name: tinySA ULTRA Handheld Spectrum Analyzer

Frequency Range: 100 kHz to 5.3 GHz (6 GHz in Ultra mode)

Display: 3.95" TFT LCD (480x320 resolution)

Input Frequency Range: 800 MHz to 6 GHz in Ultra mode

Resolution Filters: Selectable in 1, 3, and 10 steps from 200 Hz to 850 kHz

Max Output Frequency: Sinus up to 800 MHz, for Square wave up to 4.4 GHz

Output Level: -104 dBm to -16 dBm

Ultra Mode: Level calibrated up to 5.3 GHz

Internal LNA Gain: 20 dB up to 4 GHz

Displayed Points per Scan: Max 450

0-350 MHz Scan Time: 165 ms

Shortest Zero Span Time: 17 ms

DANL (Displayed Average Noise Level) at 100 MHz: -153 dBm/Hz (LNA Off) / -169 dBm/Hz (LNA On)

DANL Degrading in Ultra Mode: 10 dB above 2.5 GHz, 25 dB above 5.3 GHz

Phase Noise at 10 kHz Offsett: -92 dBc/Hz

Phase Noise at 100 kHz Offsett: -110 dBc/Hz

Input 1dB Compression Level: +0.5 dBm (LNA Off) / -26.5 dBm (LNA On)

IP3 (Third Order Intercept) without LNA: +18 dBm (at least 2 MHz apart) / 0 dBm (500 Hz apart)

IP3 with LNA: -8 dBm (at least 2 MHz apart)

Frequency Stability: <1 ppm (-10°C ~ +55°C)

SD Card Slot: Micro SD Card

Audio Out: 3.5mm Headphone Plug

FW Update Mode Activation: Push jog button before switching on

Maximum Current Consumption: 330 mA

Maximum Charging Current: 1300 mA

Battery: Li-polymer 3.7V 3000 mAh

RF Connectors: SMA Female

Communication Interface: USB-CDC (Type-C), UART-TTL (2.54mm Connector)

Appearance Size: 117 x 72 x 23 mm (Excluding protruding parts)

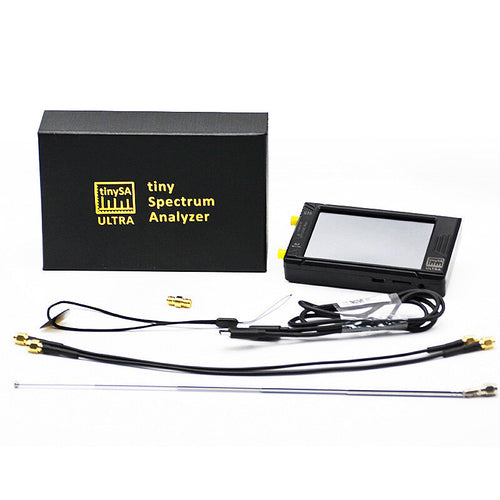

Package Include:

1 x Host (with 3000mAh battery, 4"display)

1 x USB Type-C data cable

2 x 30cm ALSR100 SMA cables

1 x SMA-SMA barrel connector

1 x Antenna with SMA connector

1 x Lanyard and touch plectrum
