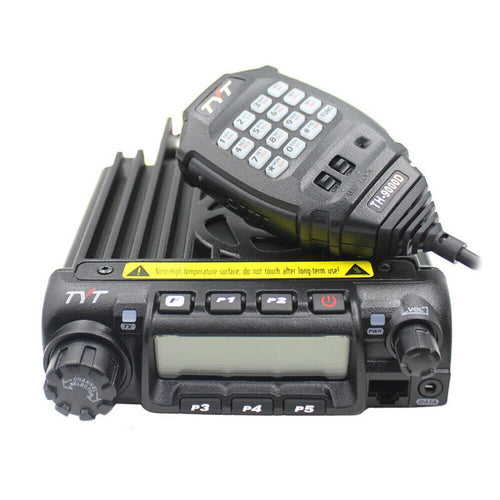

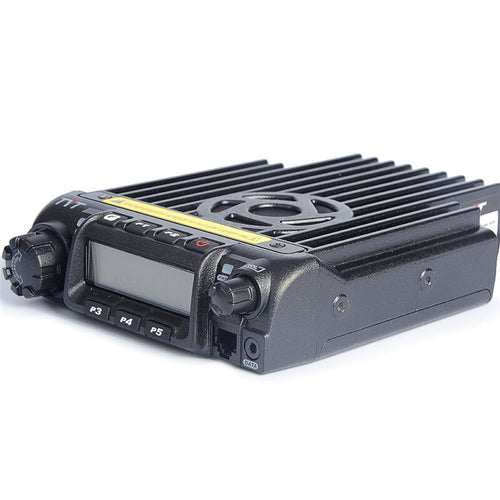

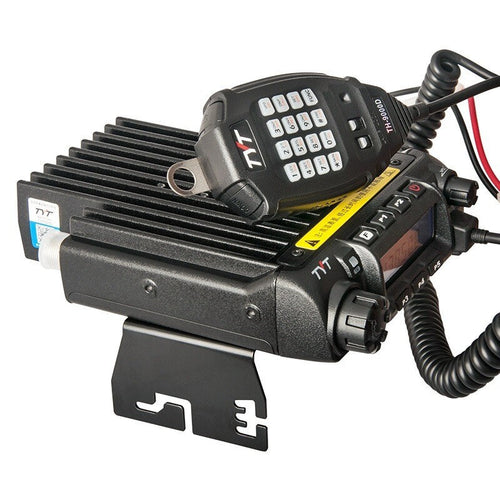

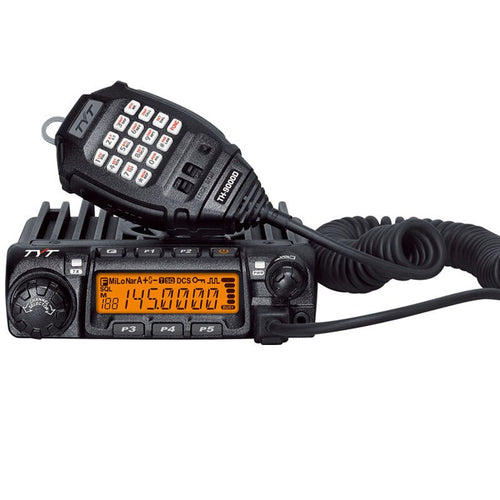

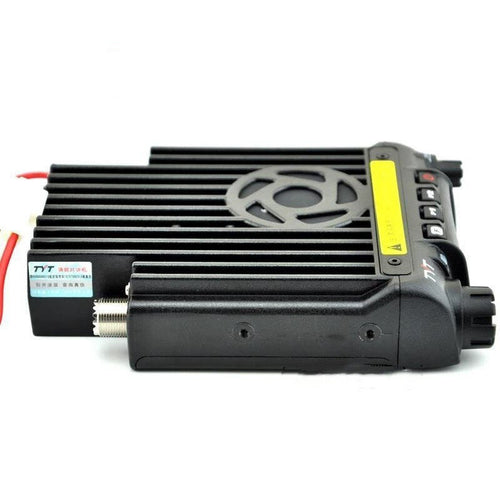

TYT TH-9000D 60W UHF 400-490MHz Walkie Talkie Long Range 200 Channels Car Two Way Radio Transceiver Truck Mobile Ham Mobile Radio

Features:

Faint from a distance, die from a distance, wake up from a distance

Wide and narrowband optional functions

Channel name editing function

CTCSS/DCS

Optional functions for high, medium and low power

Voice companding function

Frequency difference setting function

DTMF/2T/5T

Voice prompt function

Automatic shutdown function

Emergency call function

Anti-theft alarm function

Scan function

1750Hz

AN identity recognition (caller ID function) & PTT-ID function

Specifications:

General Parameter:

Frequency Range:

VHF: 136- 174MHz

245 - 245.9875MH2(220 - 260MHz)

UHF: 400- 490MHz

Channel Quantity: 200 channels

Channel Interval:

-- 25K (Wide Band)

-- 20K (Middle Band)

-- 12.5K (Nanow band)

Step Value: ±2.5ppm

Operating Voltage: -20~ +60C

Working Temperature: 13.8V DC±15%

Dimensions: 145(W)x47(H)x190(D)mm

Weight: About 1.2kg

Receiver Part:

-- Broadband:

Sensitivity: ≤0.25uV

Adjacent Channel Selectivity: ≥70dB

Intermodulation: ≥65dB

Spurious Response: ≥70dB

Audio Response: +1~-3dB(0.3~3KHz)

Signal to Noise Ratio: ≥45dB

Audio Distortion: ≤5%

Audio Power: >2W@10%

-- Narrowband:

Sensitivity: ≤0.35uV

Adjacent Channel Selectivity: ≥60dB

Intermodulation: ≥60dB

Spurious Response: ≥70dB

Audio Response: +1~-3dB(0.3-2.55KH2)

Signal to Noise Ratio: ≥40dB

Audio Distortion: ≤5%

Audio Power: >2W@10%

Transmitter Part:

-- Broadband:

Output Power: 60W/25W/10W (VHF)

Modulation Mode: 16K F3E

Adjacent Channel Power: ≥ 70dB

Signal to Noise Ratio: ≥ 40dB

Spurious: ≥ 60dB

Audio Response: +1 ~ -3db (0.3-3KH2)

Audio Distortion: ≤5%

-- Narrowband:

Output Power: 45W/25W/10W (UHF)

Modulation Mode: 11K F3E

Adjacent Channel Power: ≥60dB

Signal to Noise Ratio: ≥36dB

Spurious: ≥60dB

Audio Response: +1 ~ -3db (0.3-2.55KH2)

Audio Distortion: ≤5%

Package Include:

1x TYT TH-9000D Mobile Radio

1x Handheld Microphone

1x Power Cable

1x Screws Pack

1x Manual

1x Fixed Bracket

(Notice: the package do not include frequency line)
