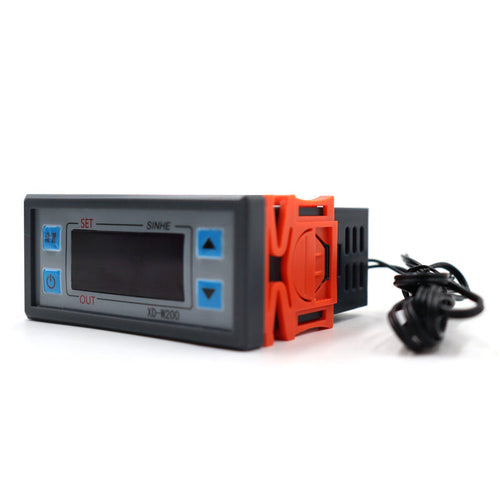

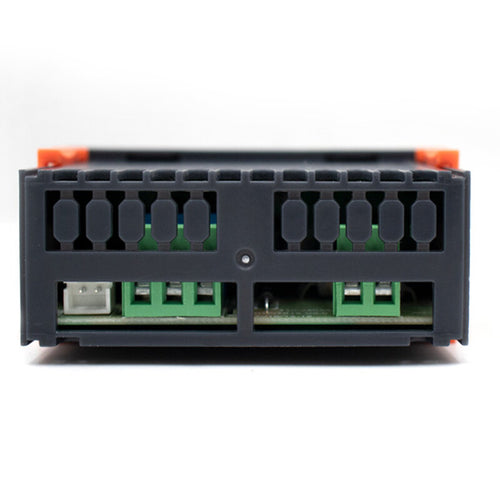

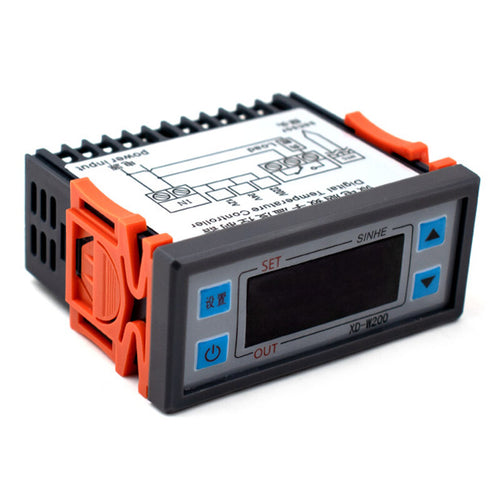

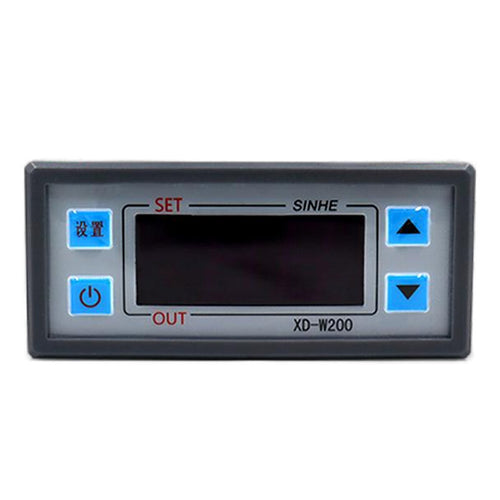

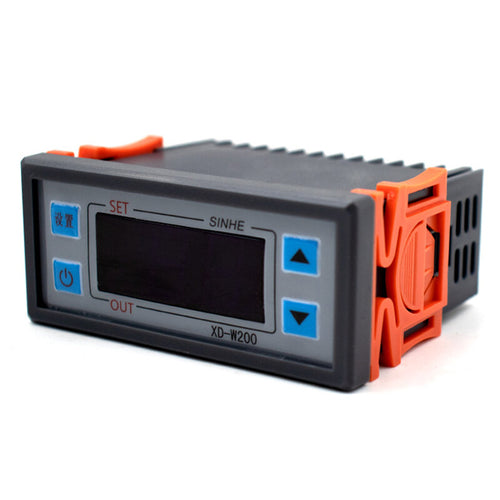

XD-W200 Embedded Digital Thermostat Temperature Controller Cabinet Freezer Refrigeration Heating Controller

Features:

1. Versatile Temperature Control:

Capable of managing a wide temperature range from -19°C to 99°C with a precision of ±1°C, making it ideal for multiple applications.

2. Reliable Performance:

Equipped with power-off and state memory functionalities, ensuring the device retains settings and state even after a power interruption.

3. User-Friendly Operation:

Comes with an intuitive interface, refreshes at a rate of 4 times per second, and is easy to calibrate for precise temperature management.

4. Sturdy Construction:

Designed to withstand operating environments with temperatures ranging from -30°C to 60°C and humidity levels between 20%-85%.

5. Energy-Efficient Output:

Supports relay output with a maximum capacity of 10A, offering efficient energy use without compromising performance.

Specifications:

Product Name: Digital Display Embedded Cabinet Thermostat

Model: XD-W200

Temperature Range: -19°C to 99°C

Control Range: -19°C to 99°C

Temperature Accuracy: ±1°C

Measurement Input: NTC10K Waterproof Probe (L=1 meter)

Refresh Rate: 4 times/second

Operating Environment: -30°C to 60°C, Humidity 20%-85%

Power Input Options: 12224/220V

Output Type: Relay output, maximum 10A

Dimensions: 77mm * 62mm * 34.5mm

Mounting Hole Size: 71mm * 29mm

Features: Power-off Memory, State Memory, Temperature Calibration, Delayed Start

Package Includes:

1 x XD-W200 Digital Display Embedded Thermostat

1 x NTC10K Waterproof Temperature Probe (1 meter)
