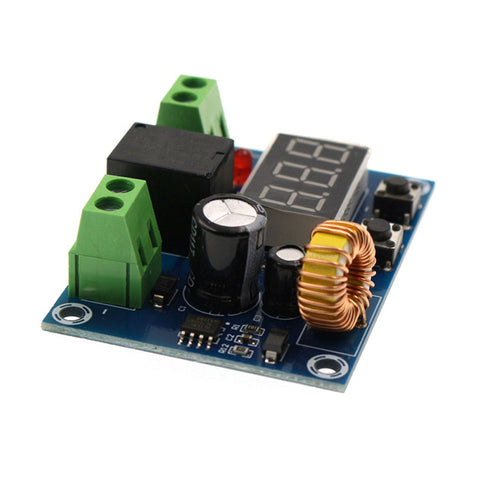

XH-M609 DC Voltage Protection Module Lithium Battery Charger Module Disconnect Output 12-36V

Features:

1. Automatic power off.

2. Discharge protection.

3. Prolong battery life.

Instructions for use:

+ key: press once to display the protection value, long press to set the protection value

- key: press once to display the hysteresis value, long press to set the hysteresis value

Setting example:

Below 11V stop voltage above 11.6V start?

Method: long press + screen flicker set to 11, then long press - screen flicker set to 0.6 to 0K.

Disconnect below 12.5V, start up when voltage is above 14.8V?

Method: long press + screen flicker to set the stop value to 12.5, wait for the screen to stop flickering, then long press - screen flicker, set the hysteresis voltage value to 2.3V

Parameters:

Product name: Battery overdischarge protection module

Model: XH - M609

Power supply voltage: The 12 V- 36 V battery

Output voltage: Equal to power supply voltage

Control precision: 0.1 V

Power consumption: Less than 1.5 W

Scope of application: Various storage batteries, lithium batteries

Net weight: 28 g

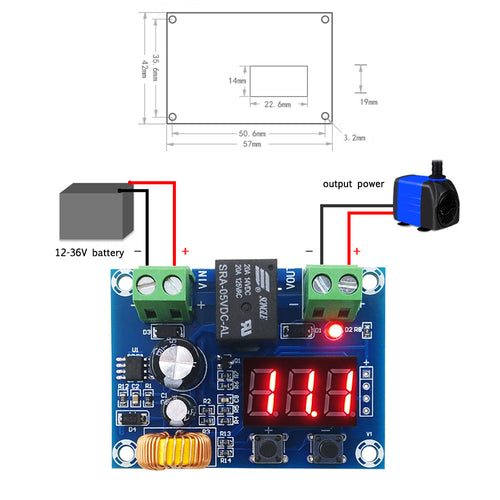

Size: 57 * 42 * 19 mm

Package includes:

1 x Battery overdischarge protection module
